This is Guide is for How Ho fit Power Folding Mirrors for the Astra j and GTC.

STEP ONE..............

Is to make two Looms for the Driver Side and the Passenger side Mirrors
The way I got the Pin’s to Add to the Connectors was to Buy a Spare Driver’s Door Loom
And Remove the Pin’s for the Connectors that you need.

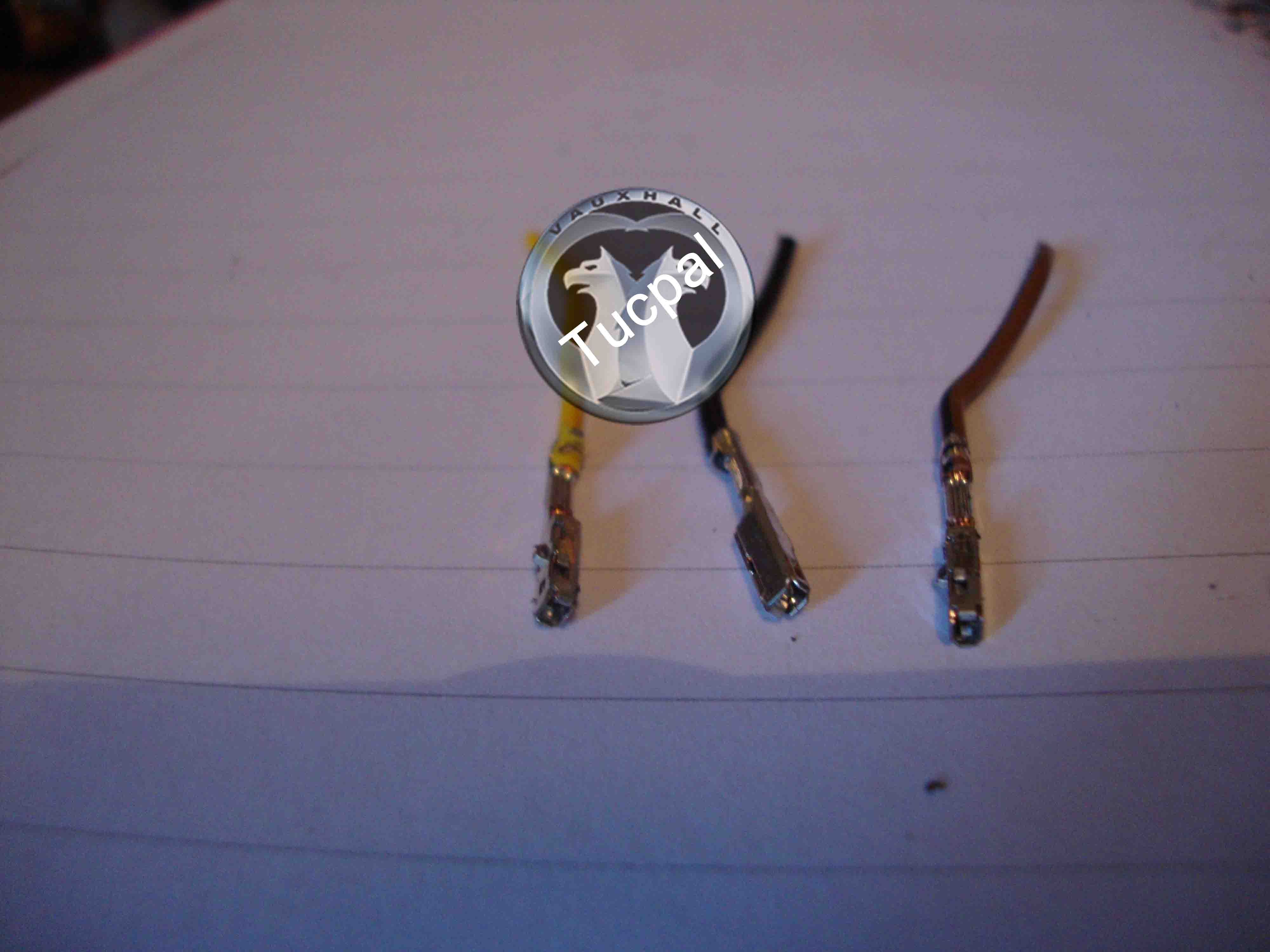

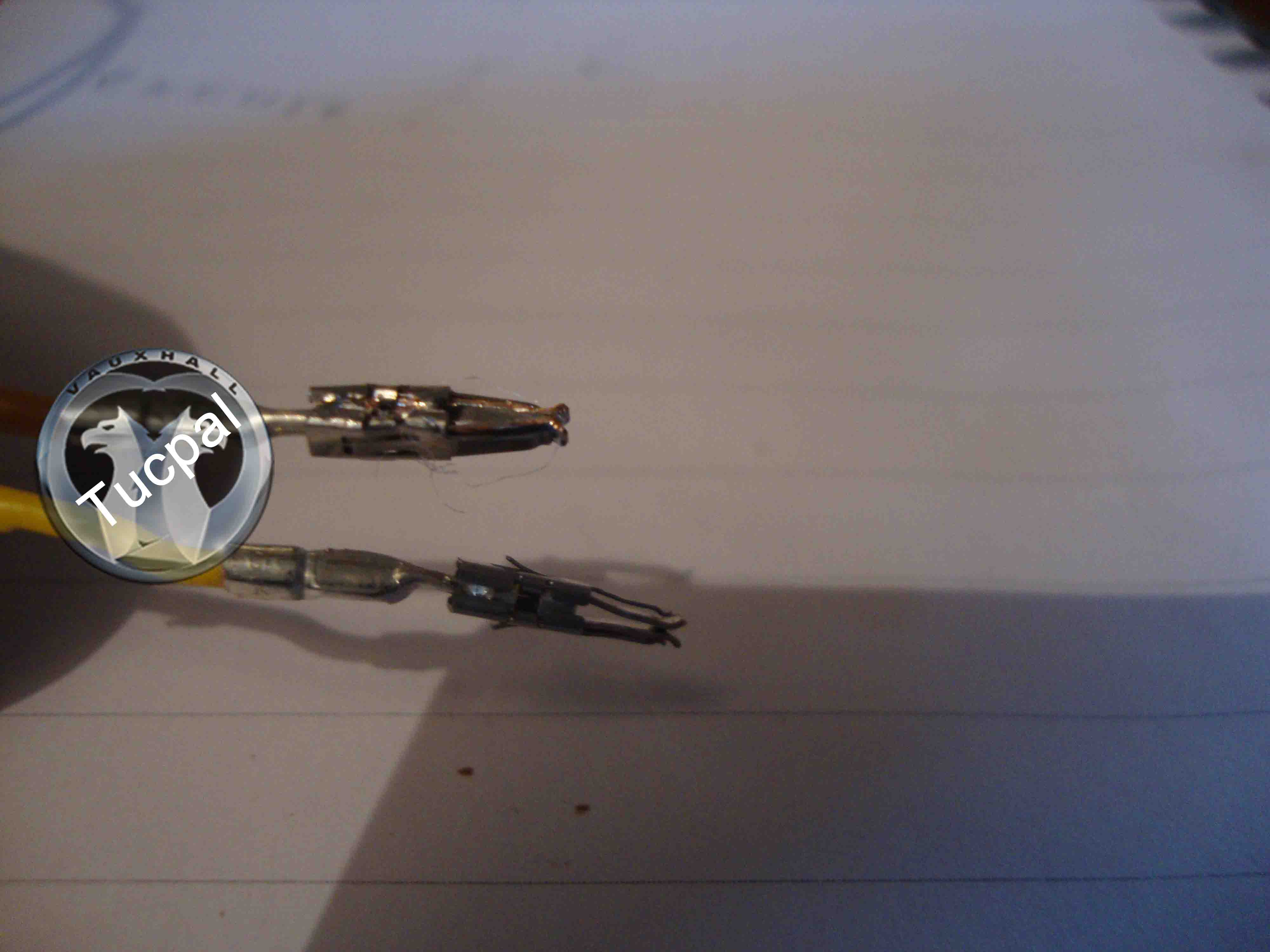

I have taken Pictures of the Pin’s Needed if anyone can Identify them
Can you send me a Link so I can Add them in Here
If you can find the Correct Pins this will be Easier in the long run
and cheaper 4 Pin’s for the Main Body Connector found at.

Mouser Electronic (item number 571-962942-1) seen below.

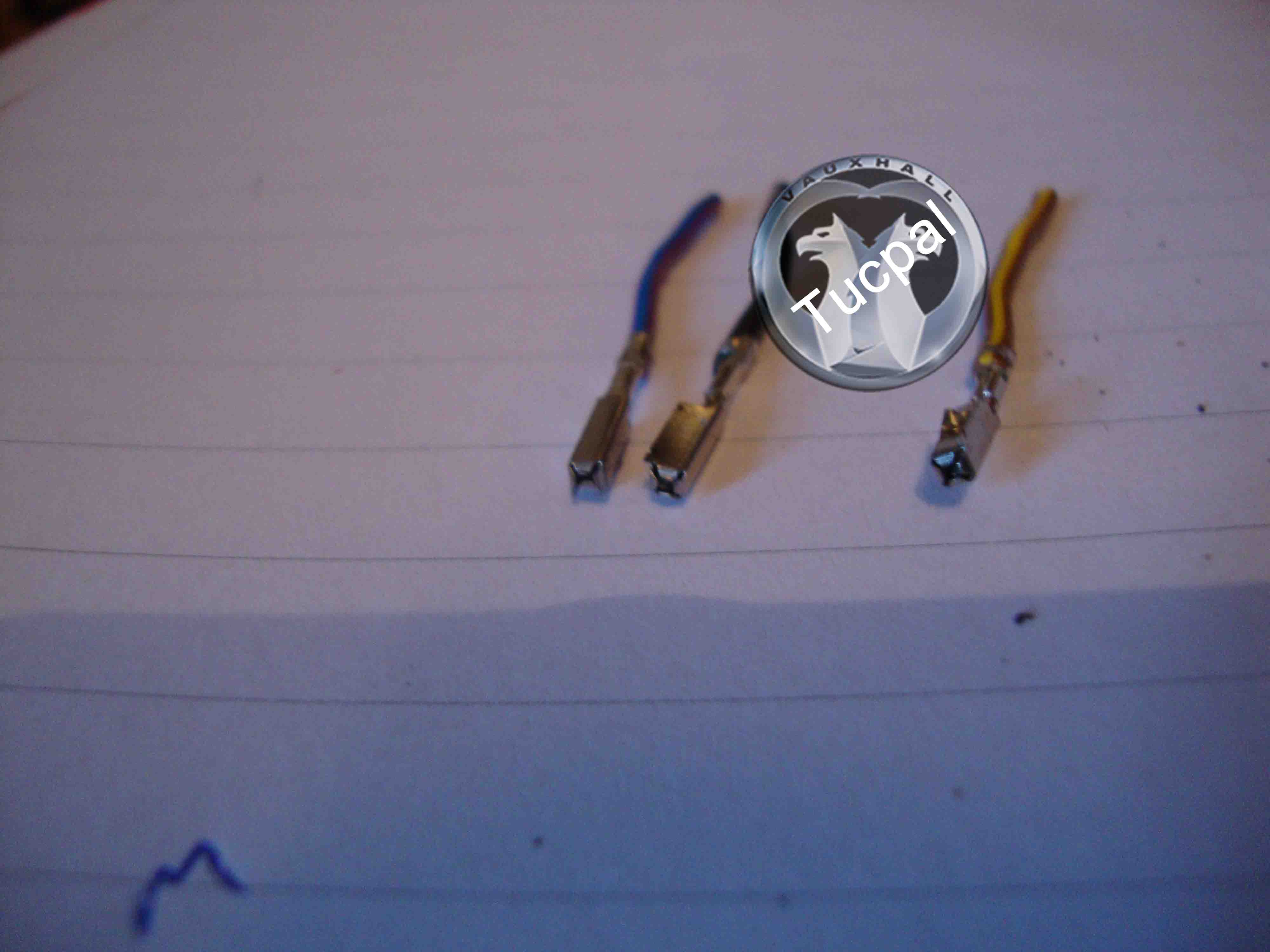

4 Pins for Mirror Connector Grey.



2 Pins for Mirror Switch Connector Black found here.

RS Components (item number 680-9027).



For the Passenger side you Need Two Wires 5 amp Wire is Fine

Two Pins for the Body Loom Connector
and Label them (11 and 12)

Two pins for the Mirror Connector Grey
label them (11, BW ) & (12, PY)
make the loom about 1 meter Long.



For the Driver’s side Add two Pins for the Body Loom Connector
and label them (11 & 12).

Add Two Pins for the Mirror Connector Grey
label them (11, BW. mirror) & (12, PY. Mirror.)

Again make the Loom about a Meter Long

Splice into the Wire Marked (11,) about 6 Inches Down from the (Mirror Connector Pin)
add about 10 Inches of Wire & Add the Pin to the End & Label this Wire (11, BW. switch)

Splice into the wire marked (12) about 6 inches down from the (mirror connector pin)
& add about 10 inches of wire & add the pin to the end & label this wire (12 PY. Switch.)

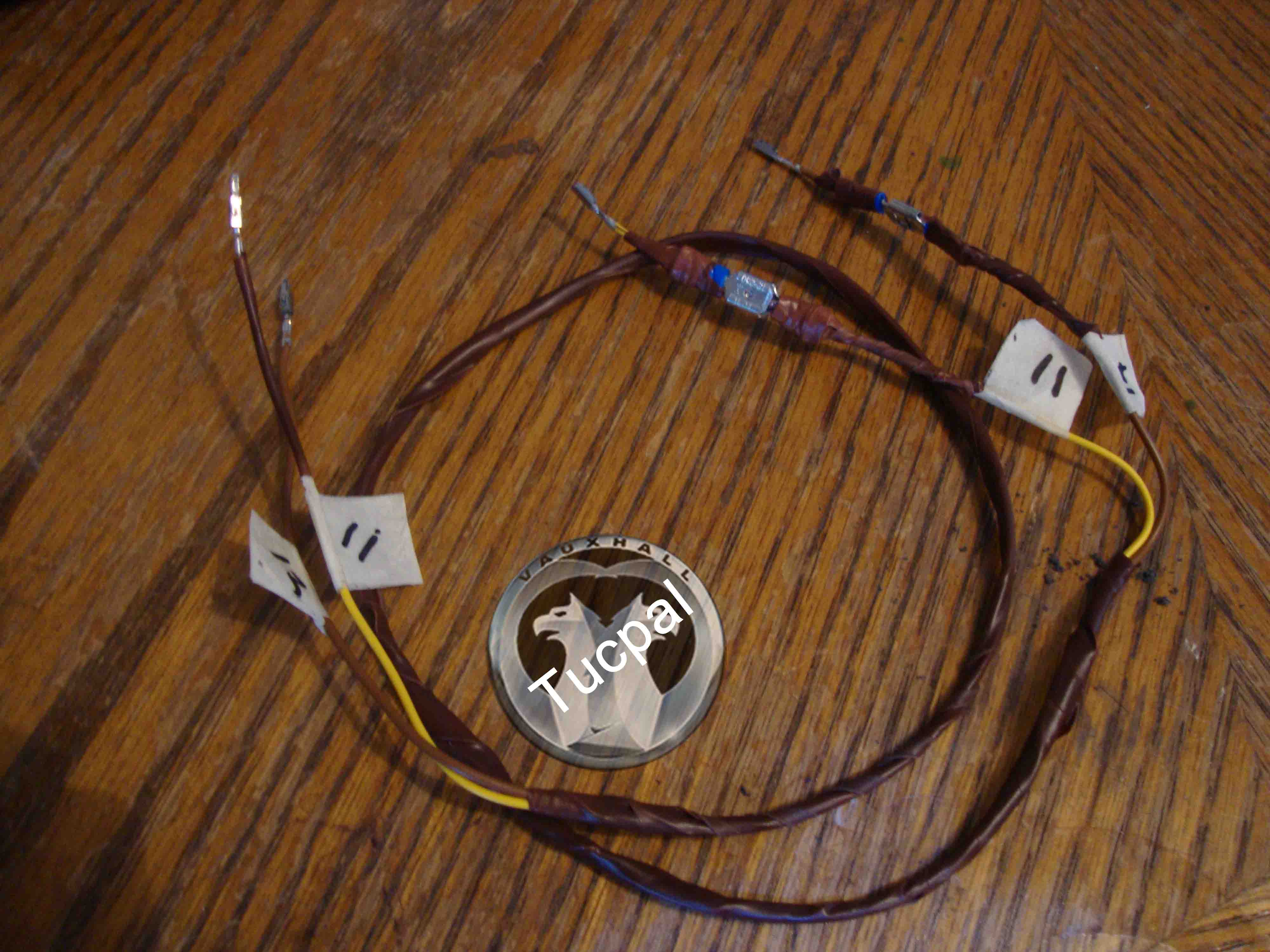

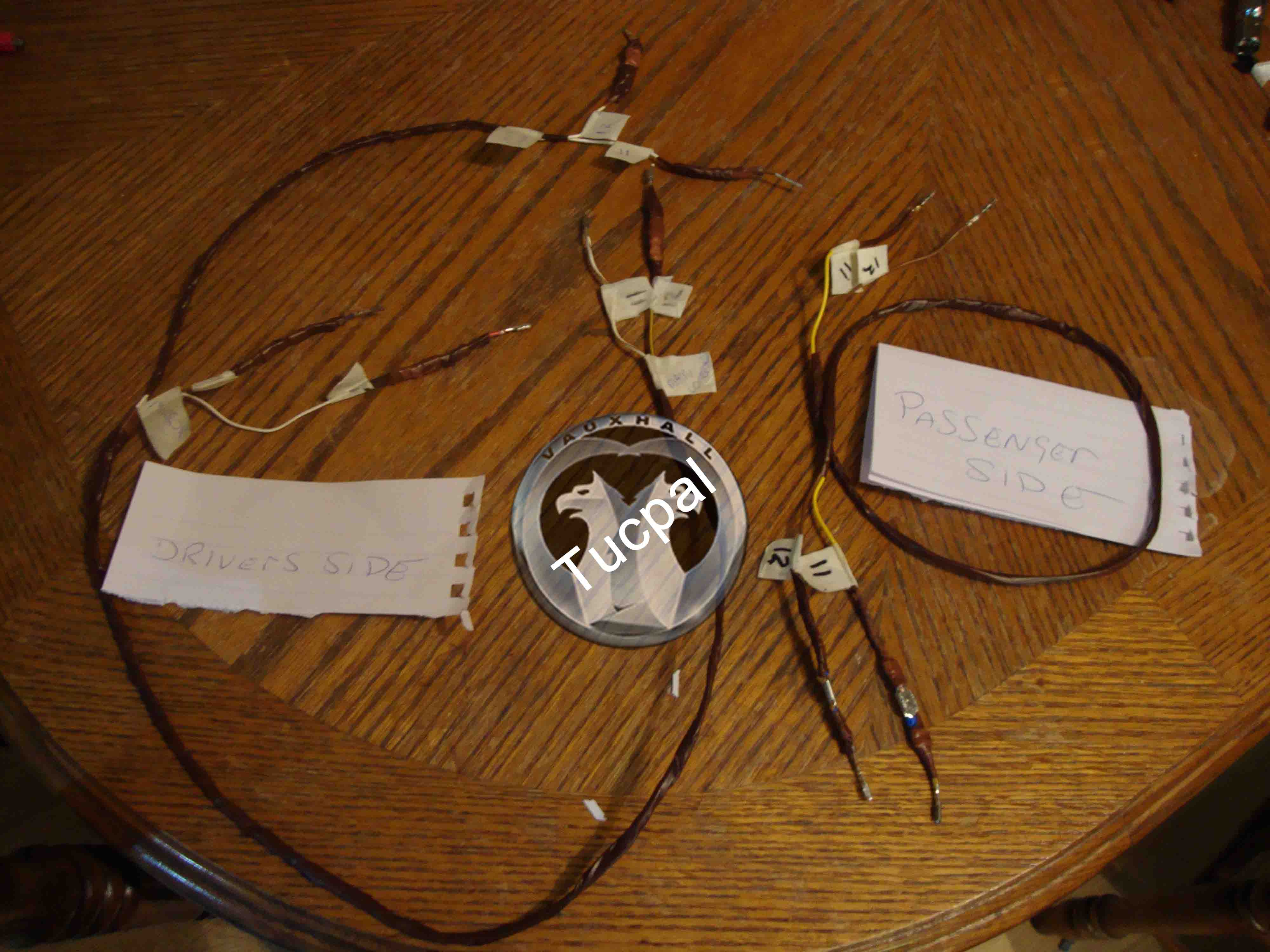

So that is the Looms made up & you are Ready to fit the Looms in place

STEP TWO...............

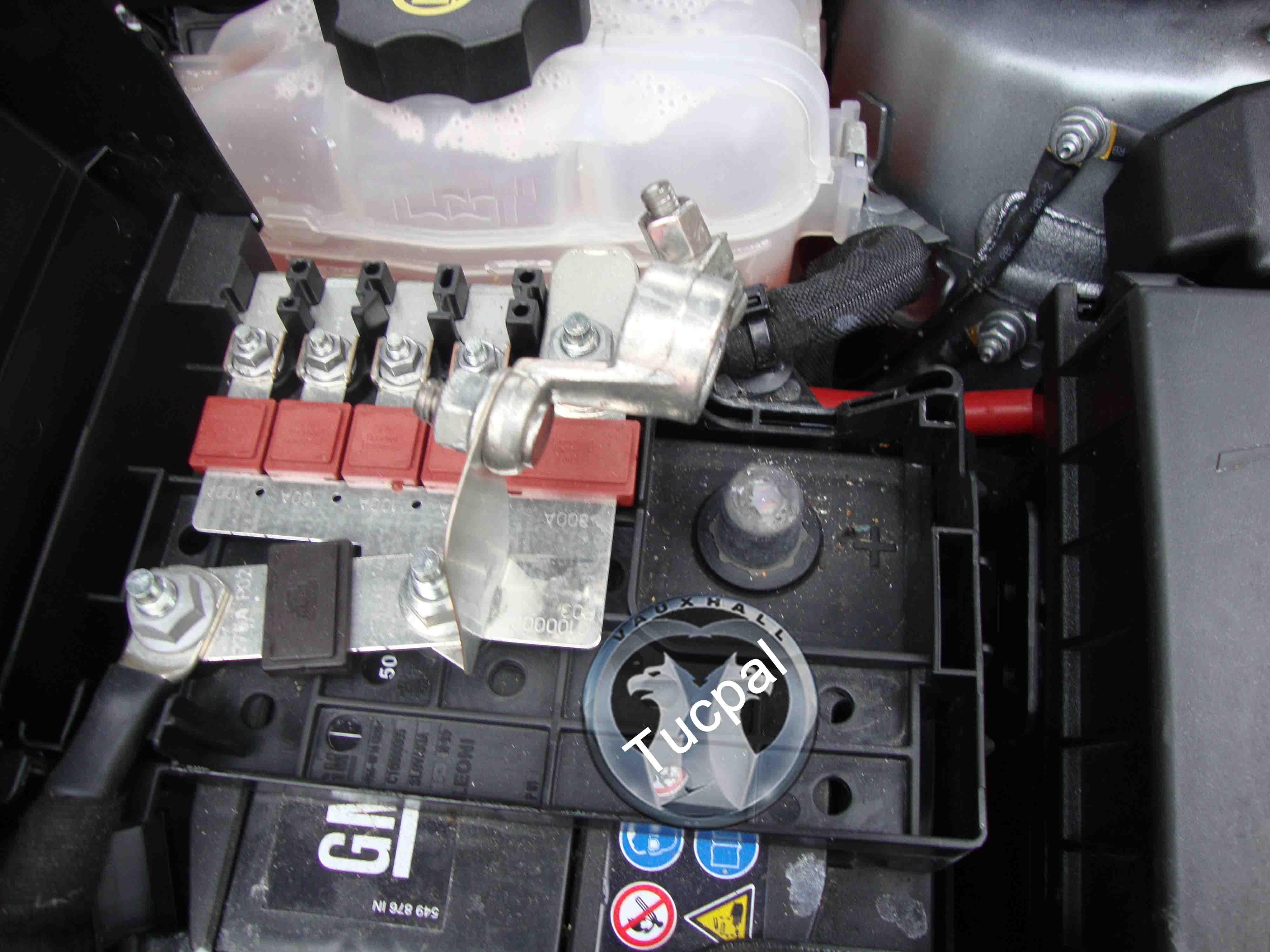

Here is to Remove the Positive from the Battery just be Safe
So you Don't get a short when you Disconnect the main Door Connector.



STEP THREE.............

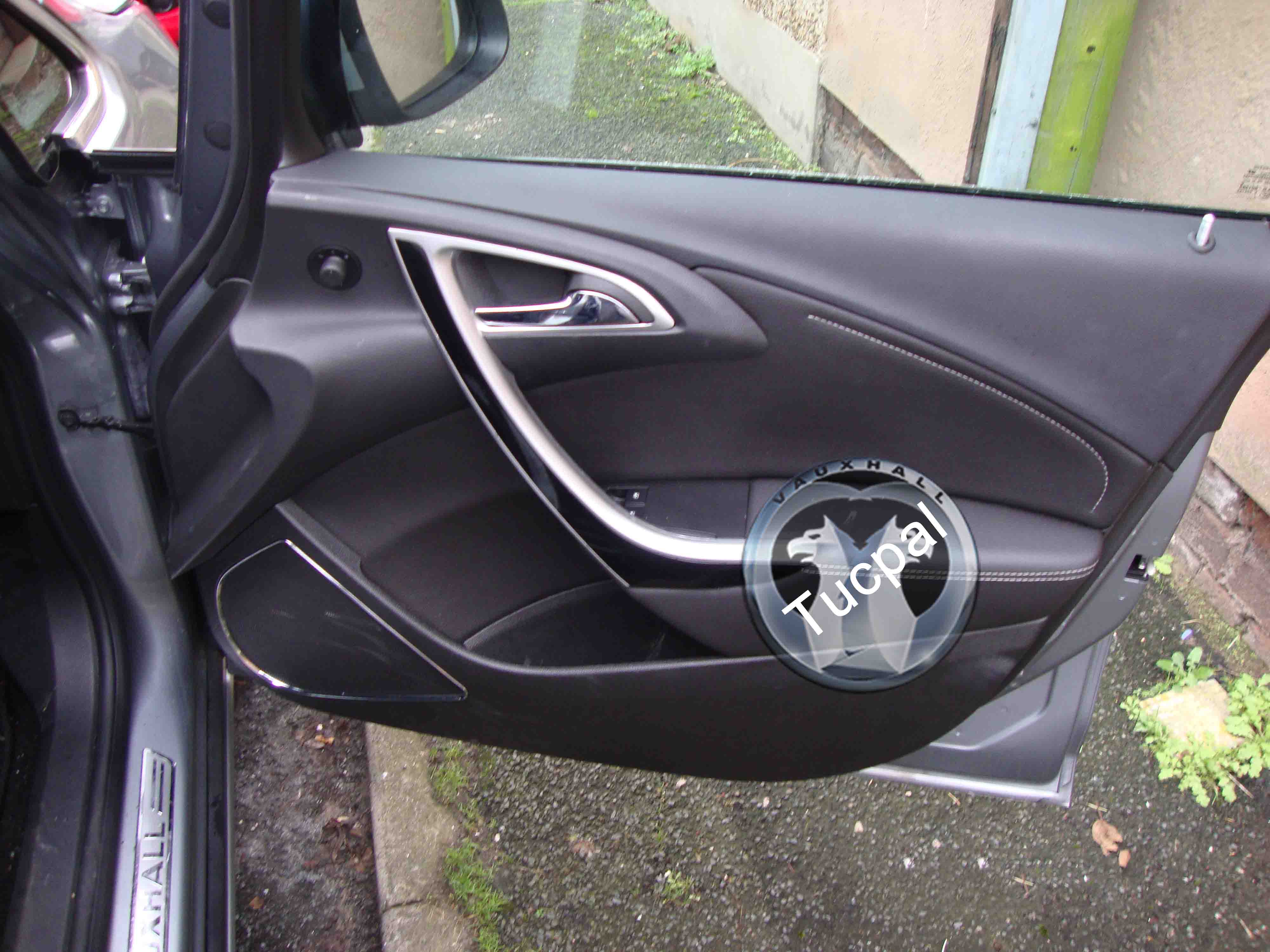

Is to Remove the Door Cards follow the How-to that can be Found Here.

here.





STEP FOUR............

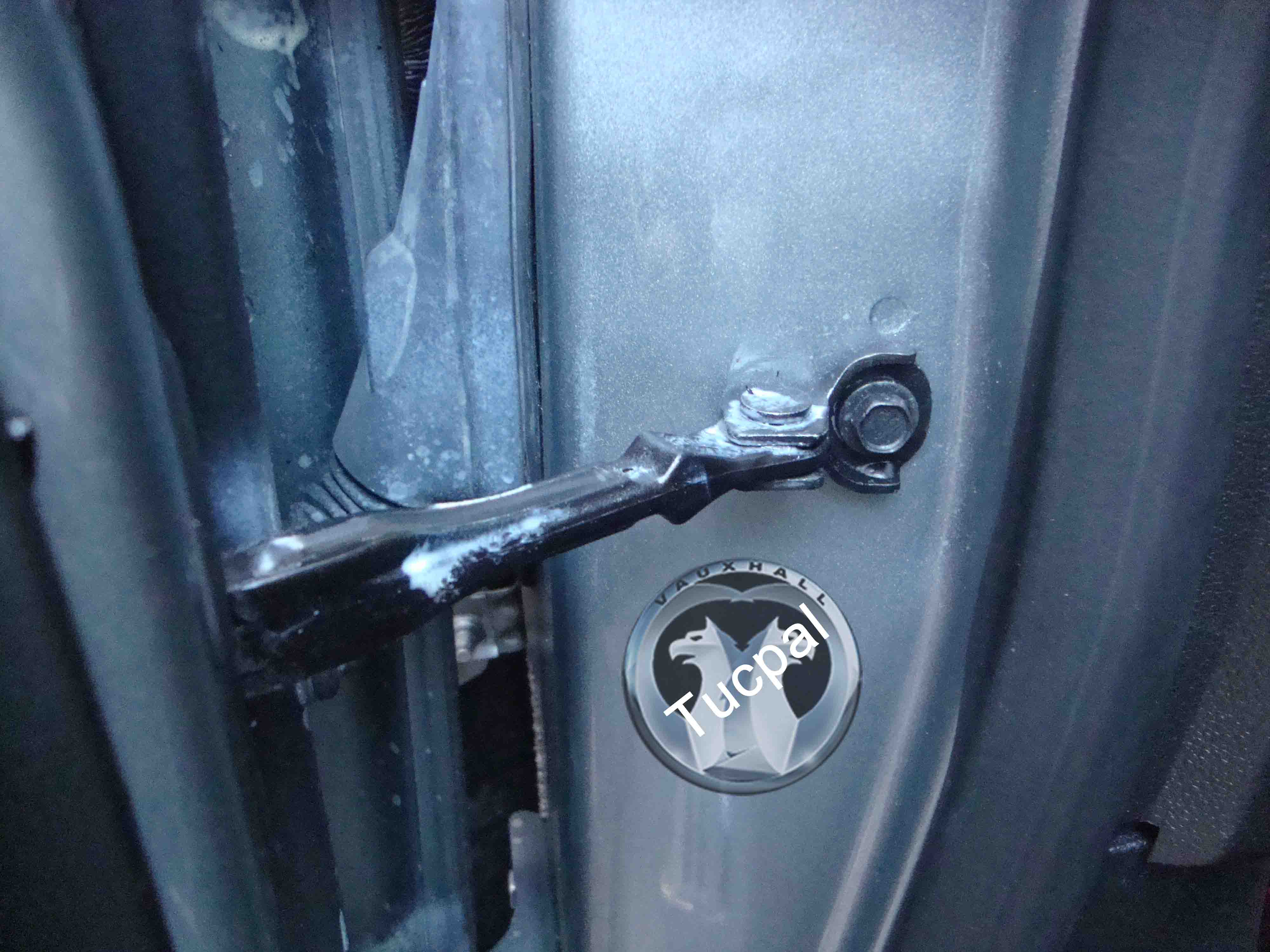

Remove the 10mm Bolt for the Door Catch to give Better Access to the main Body Connector
But be Warned do not Close the Door with this Bolt out
If the Catch Goes into the Door it is a bit of a Pig to get it out Again.

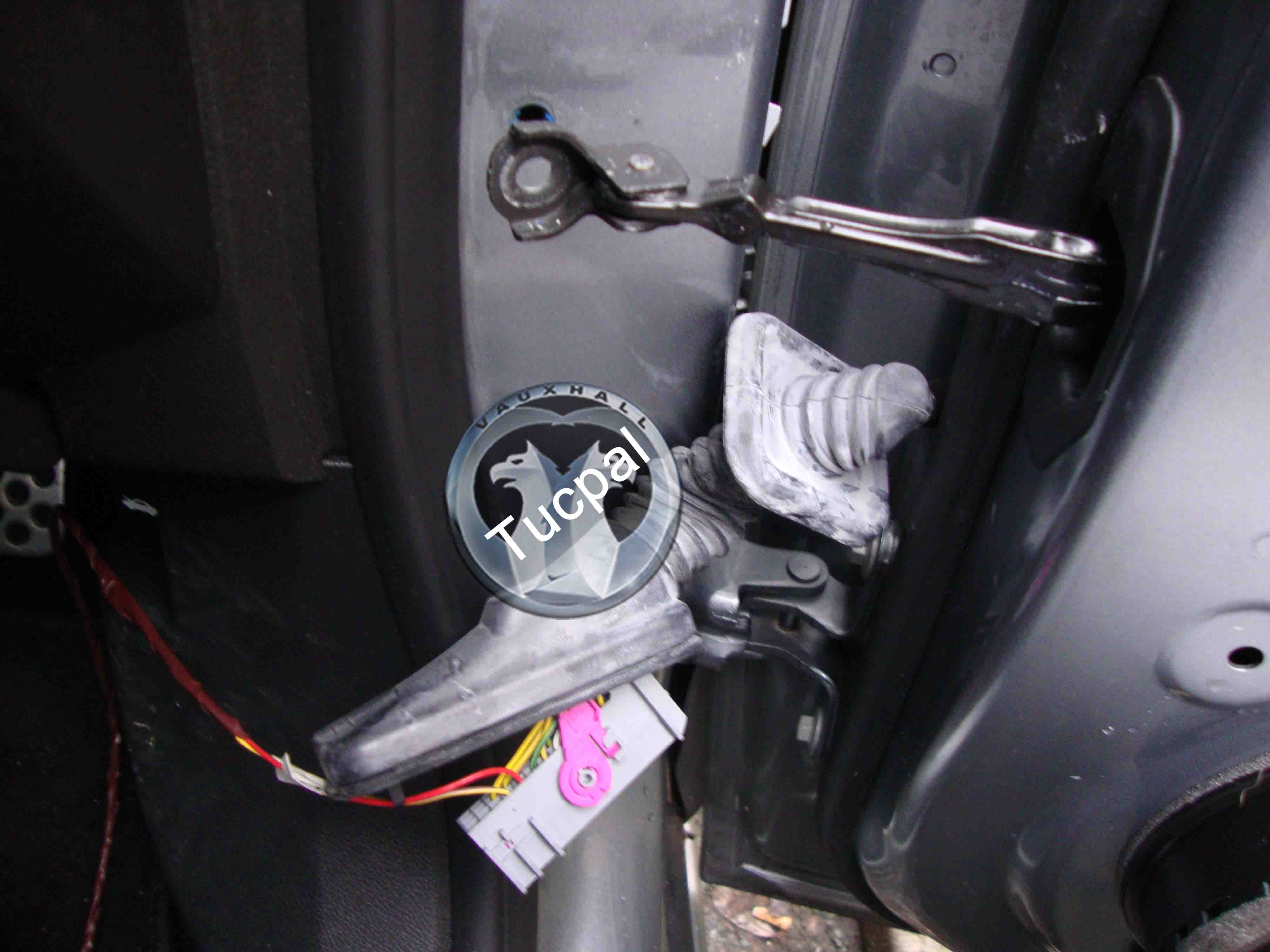

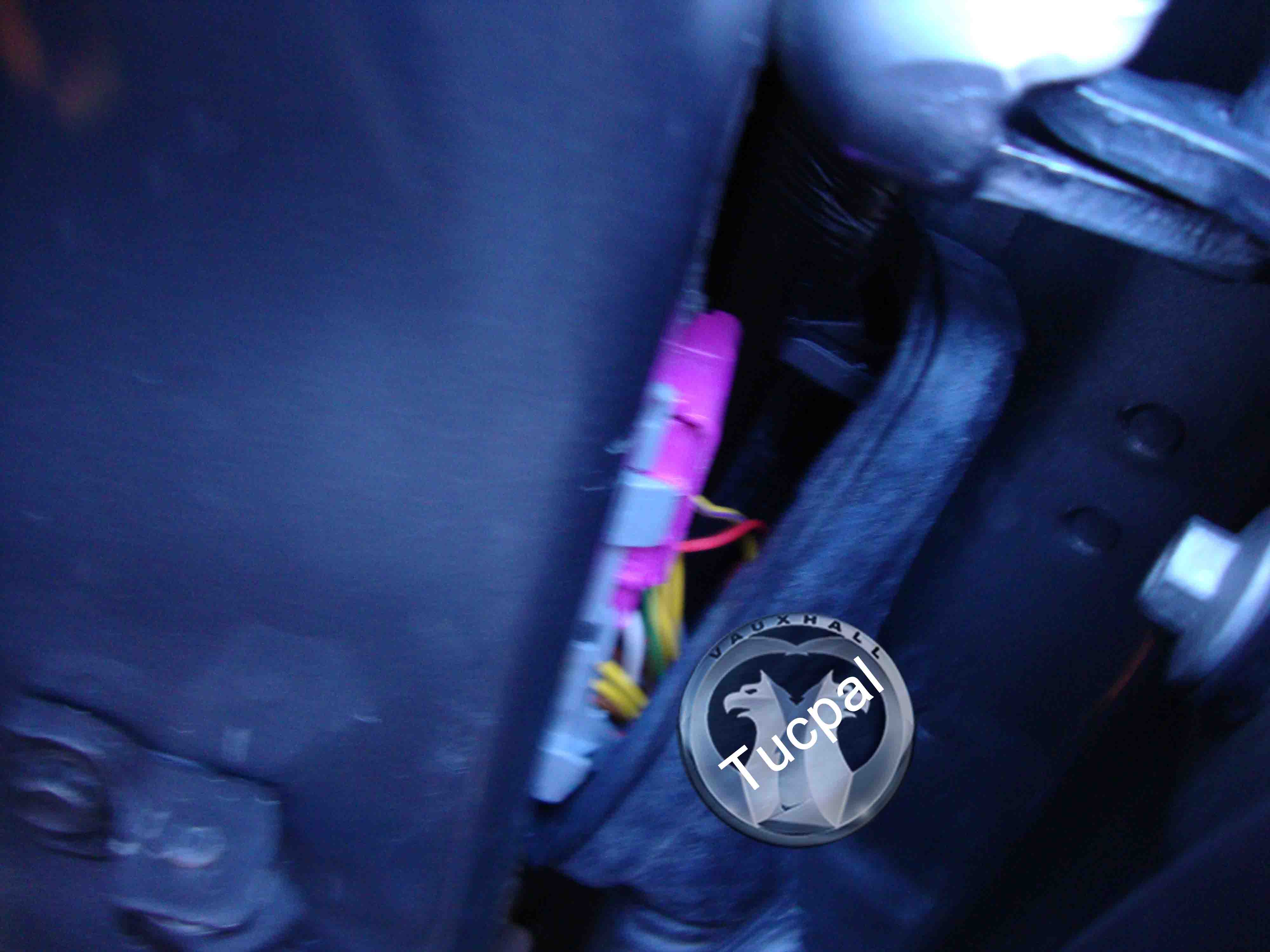

You are now able to Remove the Main Body Connector
starting at the top Remove the Rubber Boot
This will give you Access so you can now Remove the Connector
by Pulling the Pink Tab Down.

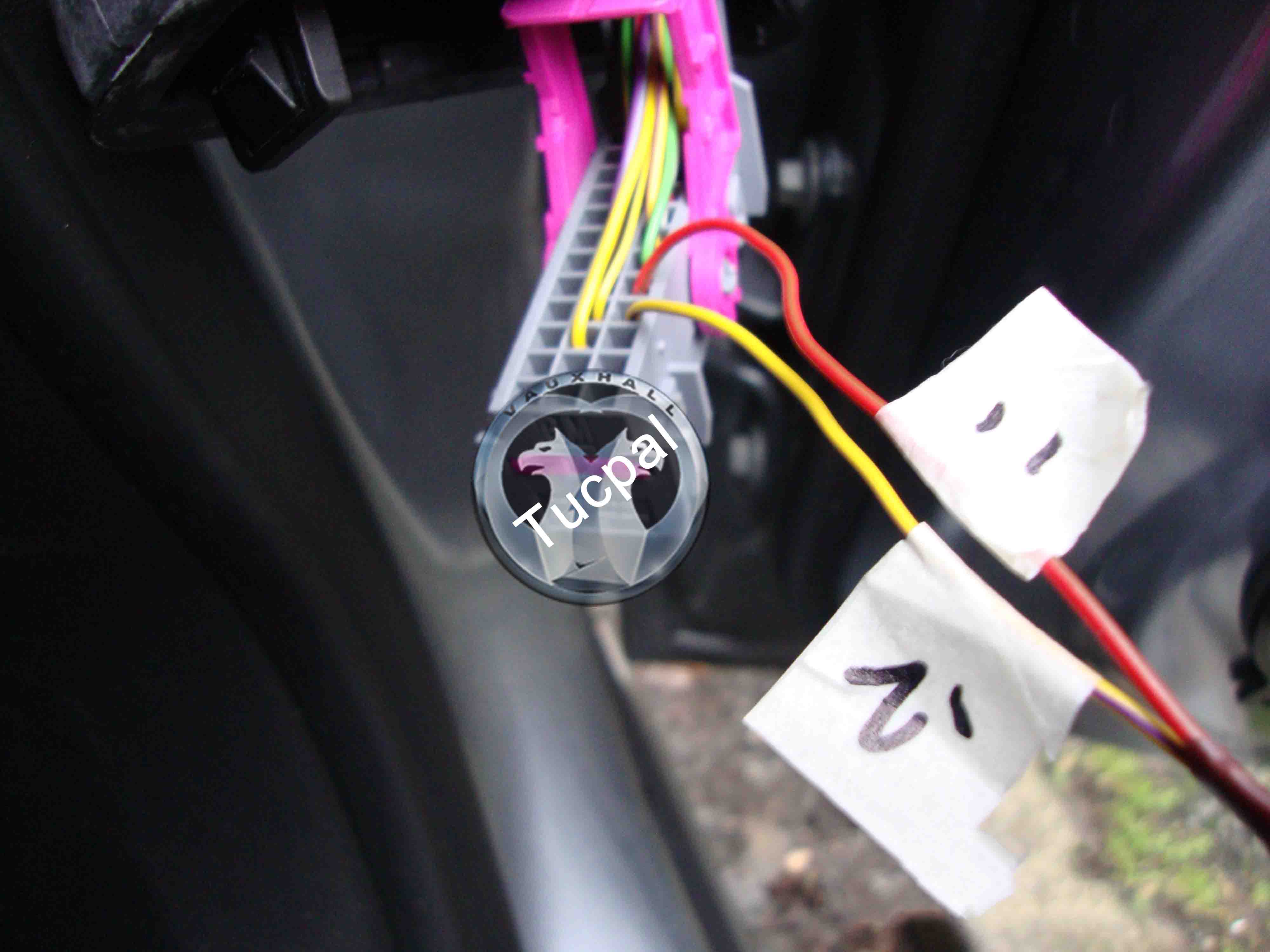

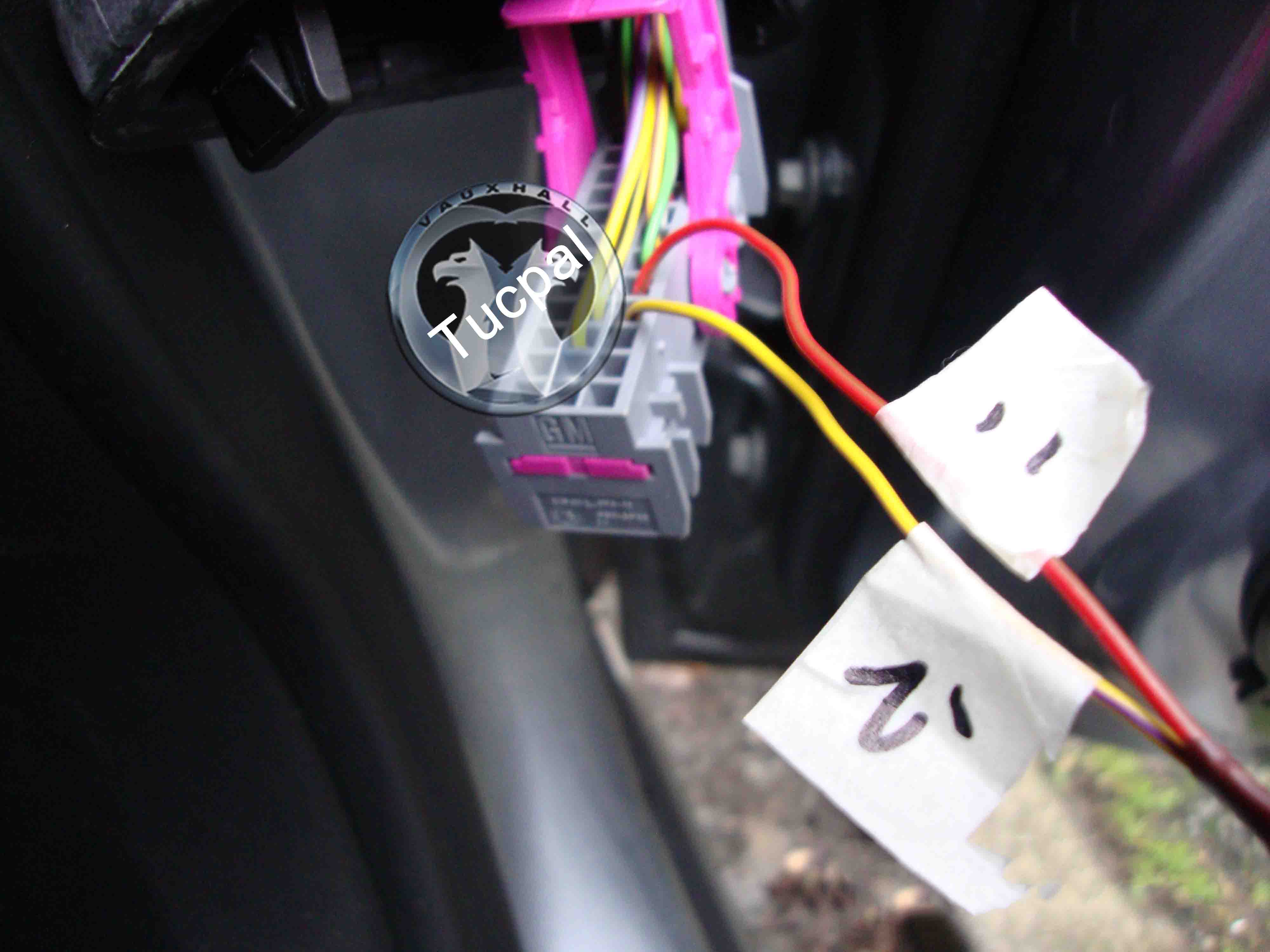

You can now Add the Pins marked 11 and 12 on the Loom
(11 Goes too Position 11)
(12 goes too position 12 )
on the Female side of the Connector
Pushing the Pins all the way in
For this to work you need to have the Corresponding Male Pins
on the male side of the Connector this can be Checked by Holding a Mirror
To see the Male Pins on the car Body
But everyone that has Done this has had them in Place so this Should not be an Issue
If they are not there then you cannot do this.

www.vxoc.org.uk



Make a small Hole in the Rubber Boot
Thread the other side of the Cable Through the Rubber Boot

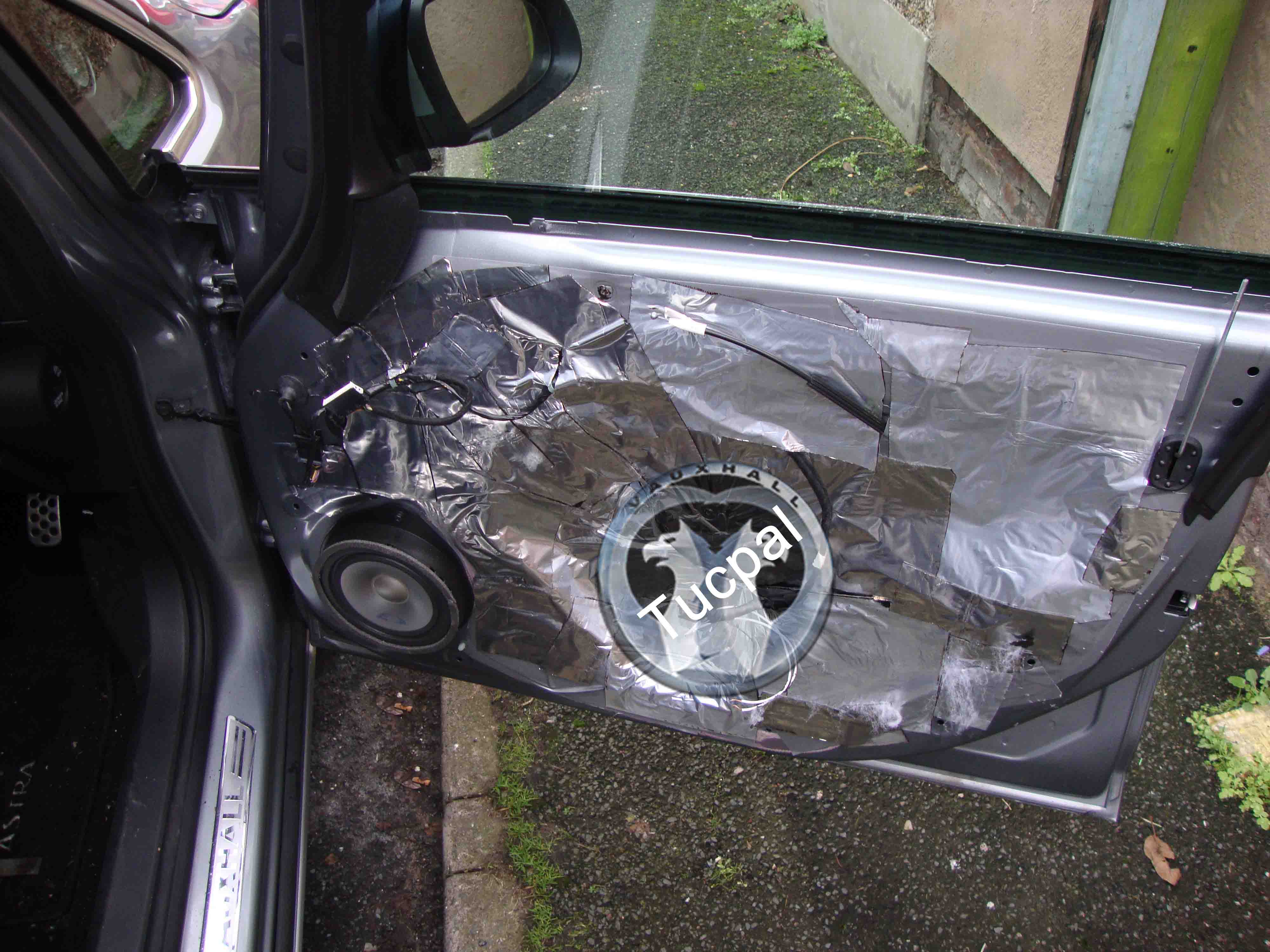

Remove the speaker from the door
so you can Gain better Access To the inside
And Pull the Cable in to the Door.

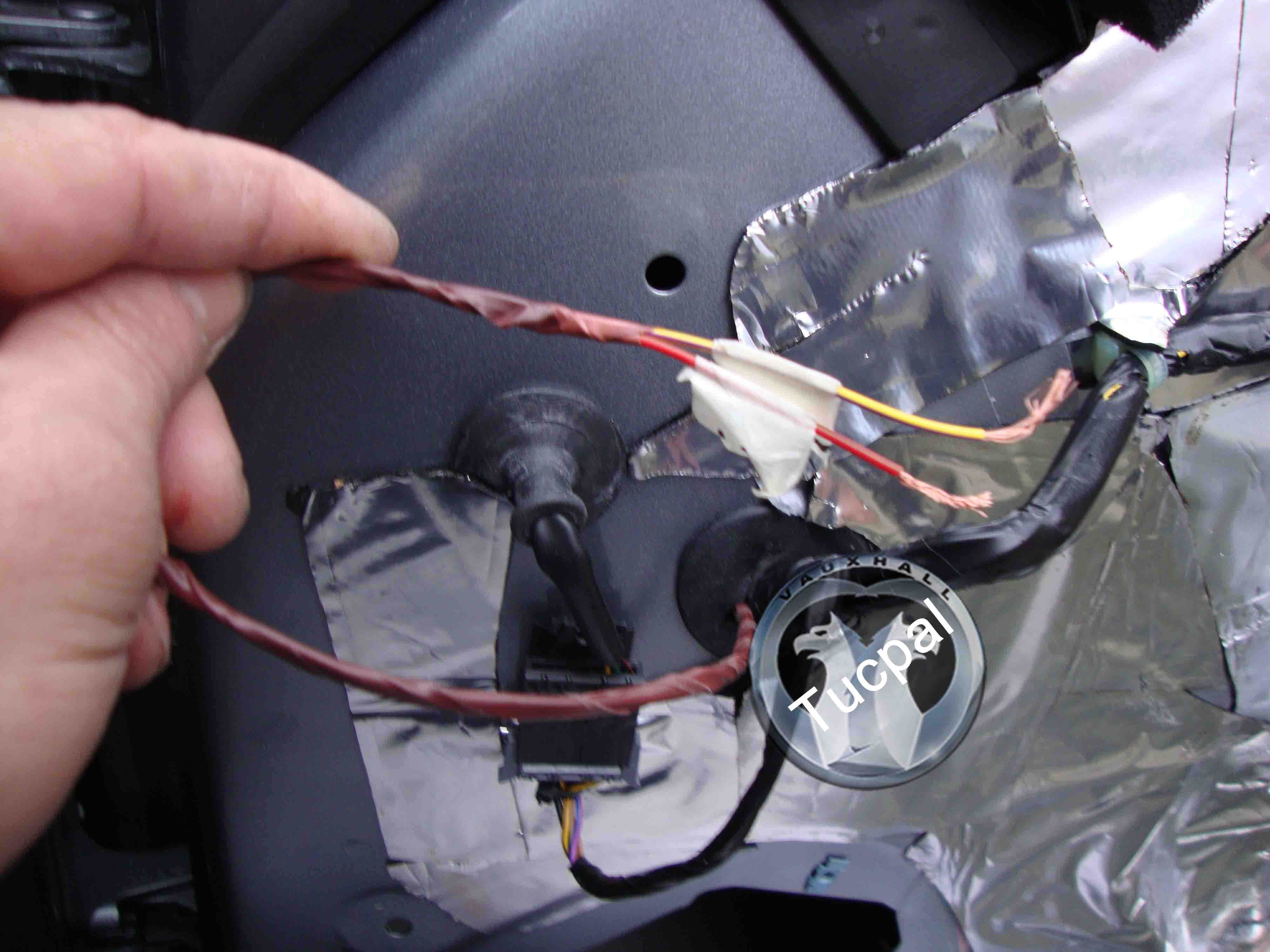

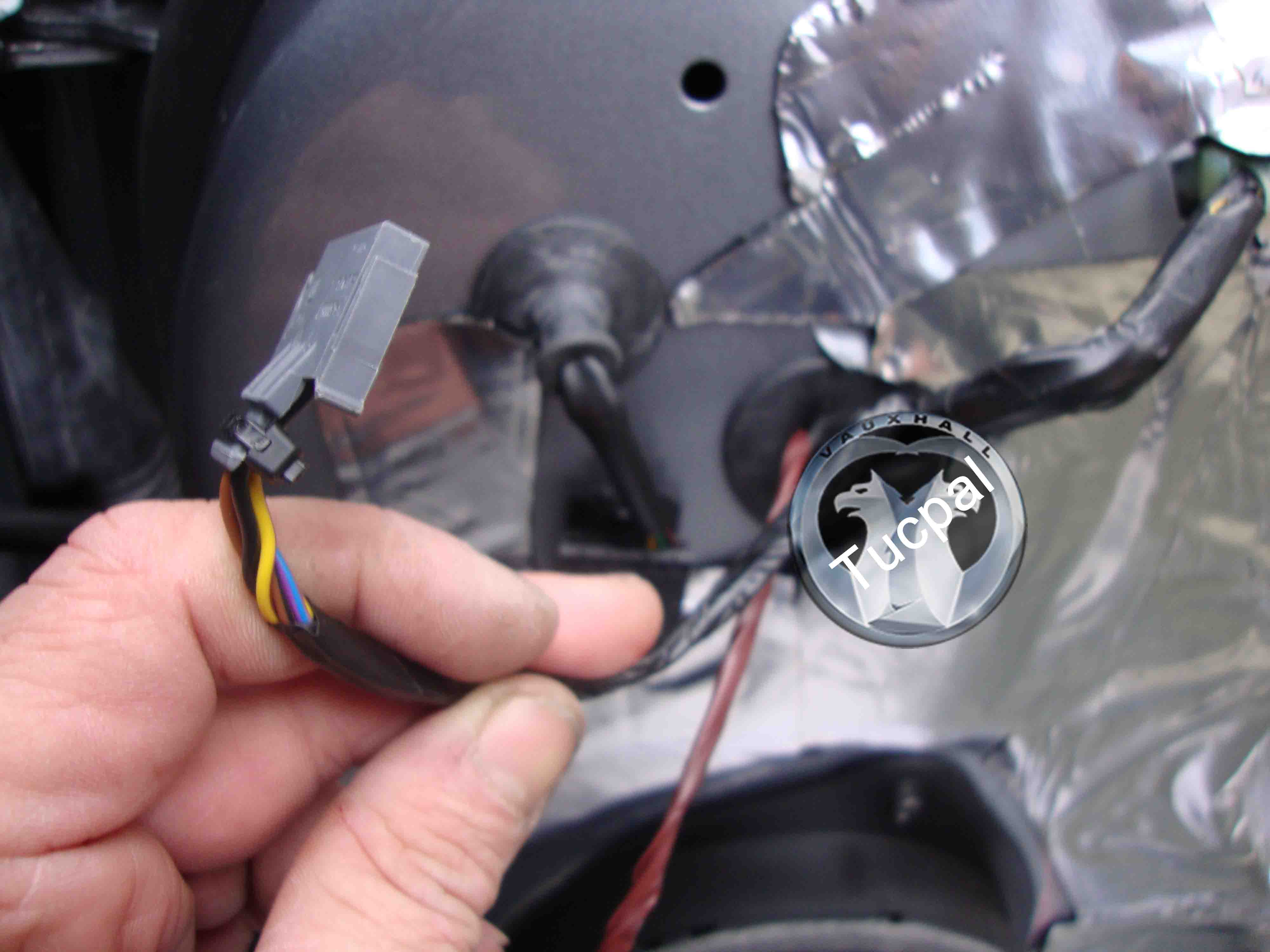

Pull the Cable up Inside the Door
out through the Black Grommet for the Mirror Connector.



Make sure you have Not Obstructed the Window Operation
and have the Cable out of the way of the Window Runners.

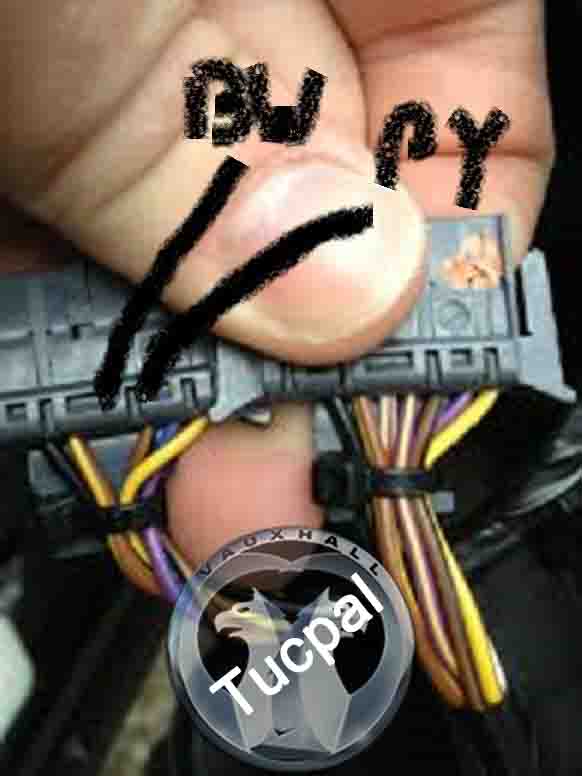

Now take the Mirror Connector (grey) & Pull back the Grey Tab so you can add the 2 Pins needed.



The Connector on the Right is what it will Look like when you have the Pins fitted the Connector
on the Left shows were to Add the pin’s

add Pin (11, BW. mirror) to Position marked (BW on the mirror connector grey)
And add (12, PY. mirror) to position marked (PY on the mirror connector grey).



Now Take the Last Two Pins from the Loom and get the (Mirror Switch Connector, black)

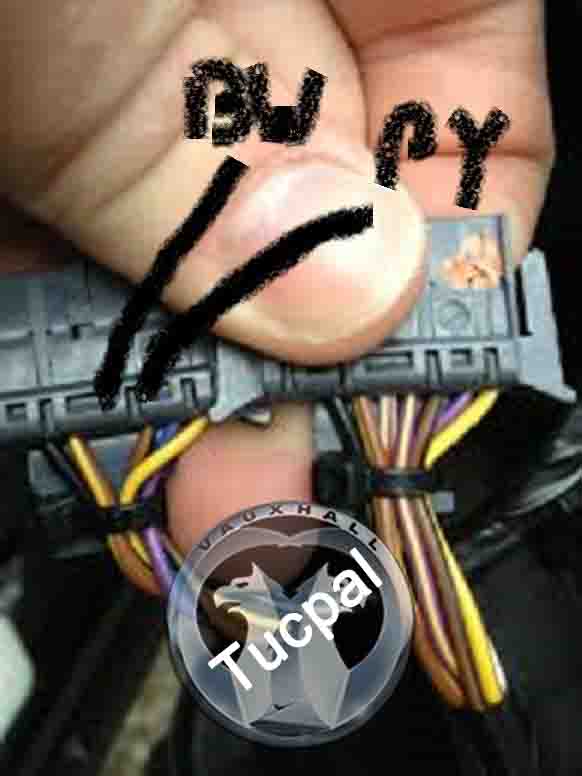

The Connector on the Right is what it will look like when the Pins are in & the Connector on the Left is were to add the Pin’s
Marked (BW. and, PY)

Add pin (11. BW, switch) to position (BW. on the switch connector, black)
Add the pin (12. PY, switch) to position (PY. on the switch connector, black)

That's the Driver’s side all Wired up
So now it is Ttime to fit the Power Fold Mirror.

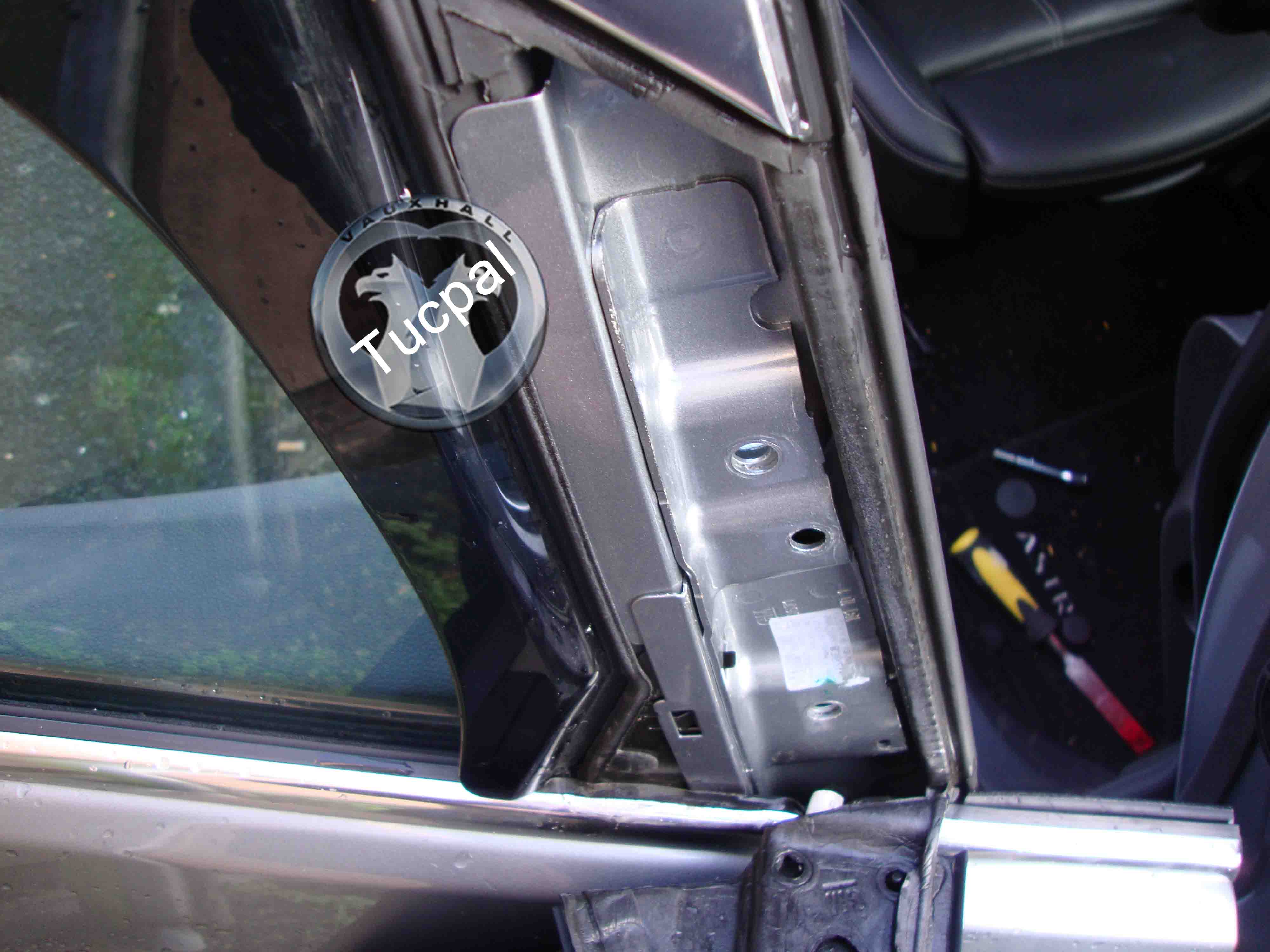

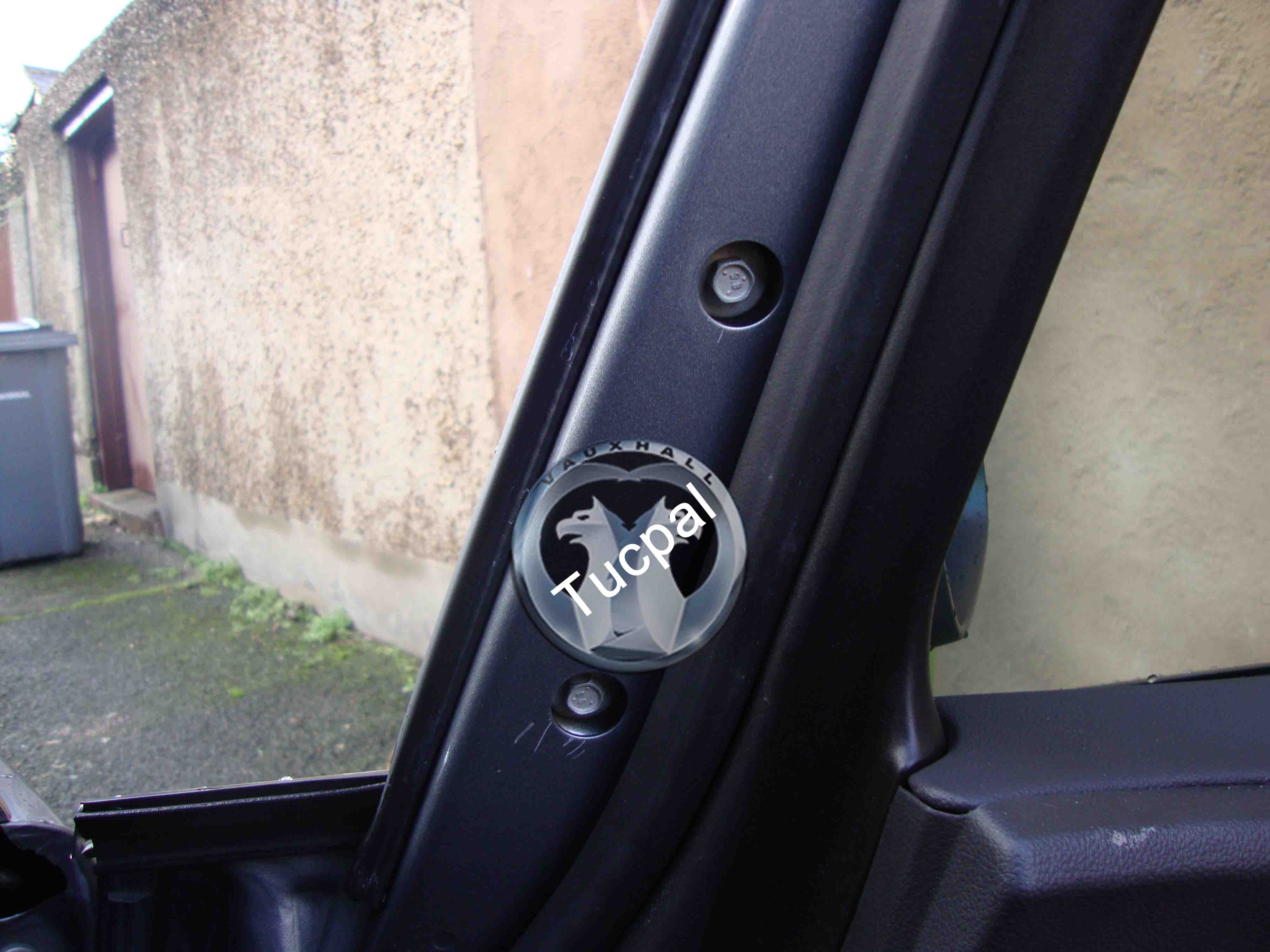

Remove Two 10mm Bolts from the inside of the Door
It is best to get Someone to Hold the Mirror
Until you have Removed to Connector
Just so the Mirror Does not Fall out.



Push the Rubber Grommet on the inside of the Door in too the Door
& Gently Pull the Cable up through the Hole on the Outside of the Door

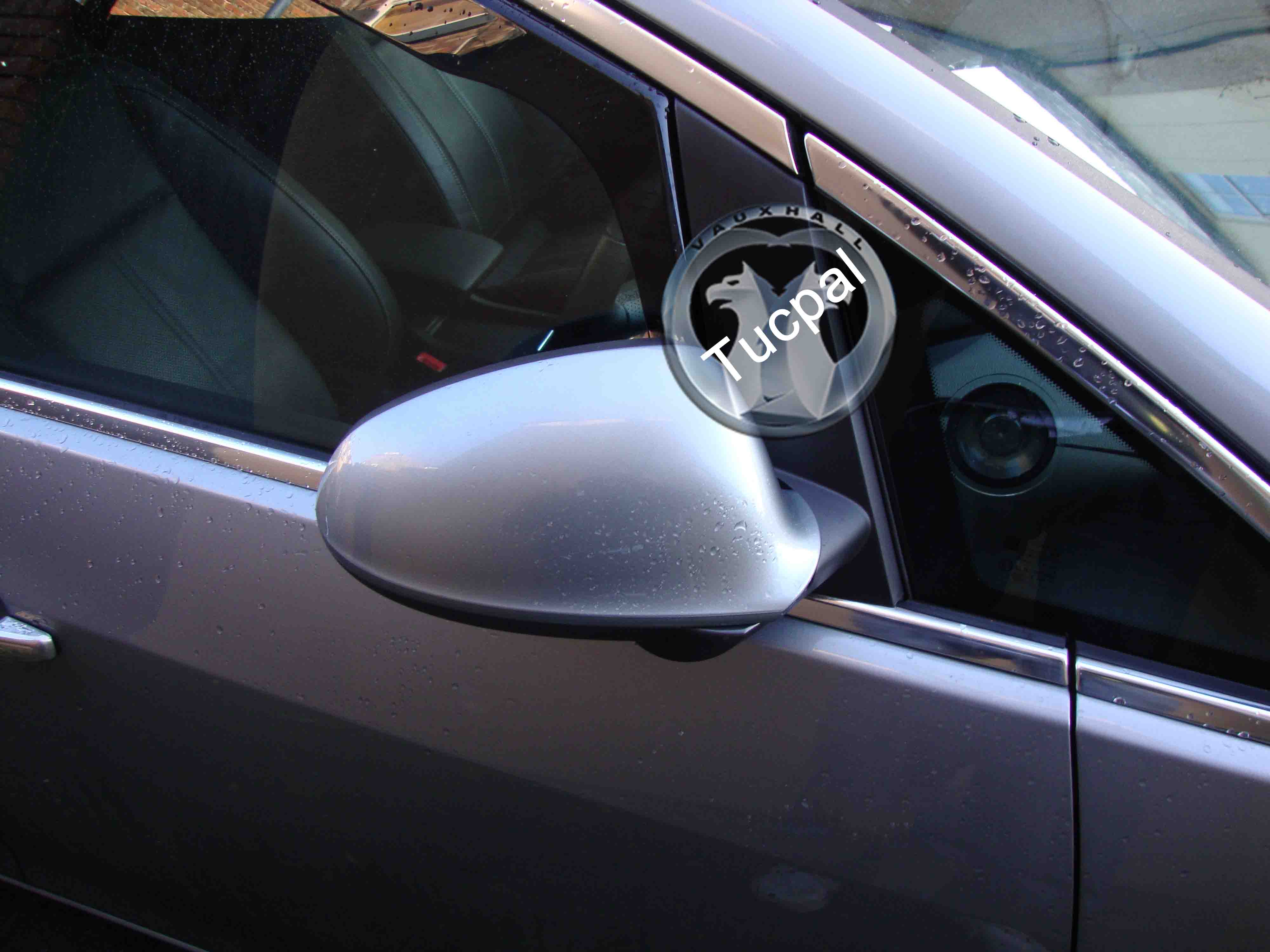

The mirror is out & off the car R
Refit the Mirror by Pushing the Cable in the Hole First
Pull it Back into Door & Refit the Grommet
You can now Refit all the Connectors & put Everything Back in Place

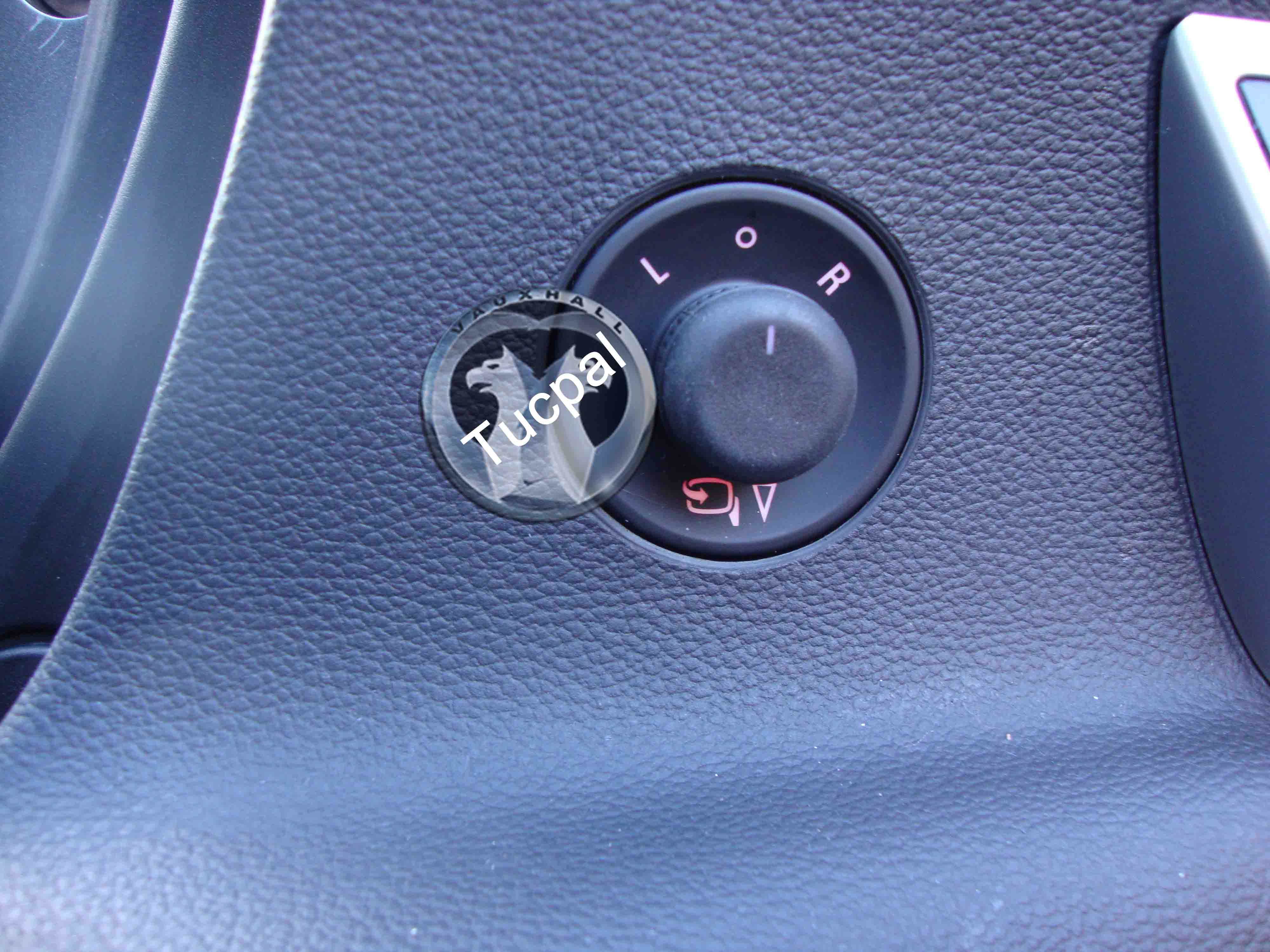

fit the new Power Fold Switch to the Door Card
You now have a Working Driver side Power Fold Mirror.





STEP FIVE........

Now for the Passenger side
Remove the Door Card etc
Get the Loom you made for the Passenger side.



Add the Pin marked (11. to position, 11.) on the (Main Door body Connector)
& the Pin Marked (12. to the position, 12.) on the (Door body Connector.)

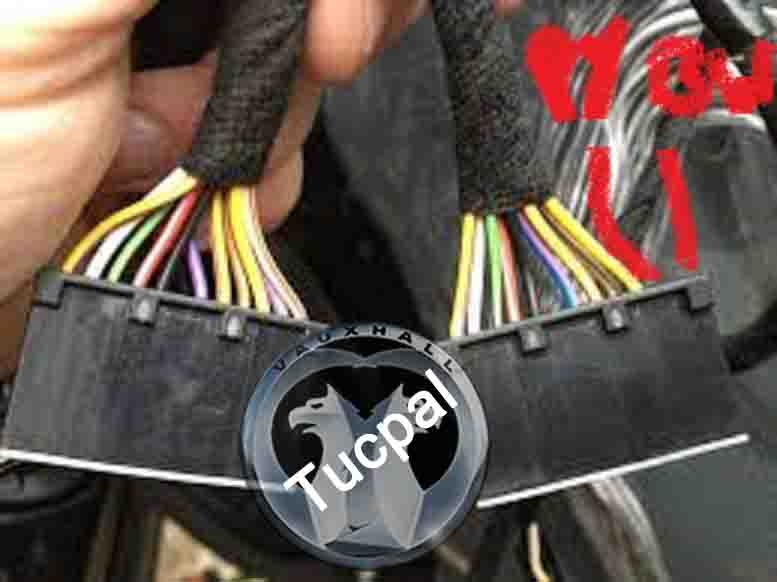

The Connector on the Left is were to Add the Pins from the Loom
The Connector on the Right is what it will Look like when they have been Added

Add pin (12) to the Position marked (PY) on the (Mirror connector, grey)
Add pin (11) to position marked (BW) on the (mirror connector, grey).



That's it Resemble Everything & You now have Power Fold Mirrors
There is no Programming Needed this is Plug and Play
So you only Need to Make the Two Looms
And get the Power Fold Switch and the Mirrors for this to Work.



Thanks for Reading & I Hope this Helps
If you need any Help just ask.

AS WITH ALL ELECTRICAL HOW TOO,S.
you do this at your own risk if you follow the how to correctly
there should be no problems thank you.
