milika

27:th-Mar-2016, 07:07:39
Hi,
Trying to change front w21 and rearw5w tailghates to leds and after experimenting a bit it seems they are tied together.
Does anyone have schematics for front/back lights? Astra j tourer...
My idea is to tie just one balast for each side. If cpu uses amere load to check bulbs i think it can be done...
Thanks


Sent from my iPhone using Tapatalk

Rusty2009

27:th-Mar-2016, 07:42:59
I'll try and grab them later today but can't promise as I'm really busy ATM.

milika

27:th-Mar-2016, 13:23:10
Thanks! No rush...


Sent from my iPhone using Tapatalk

milika

3:rd-Apr-2016, 05:53:11
Bump on the schematics...
Wanted to order ressistors soon Smile


Sent from my iPhone using Tapatalk

Rusty2009

3:rd-Apr-2016, 08:36:42
Sorry I did get them the other day just got totally side tracked on the house improvements.

Low and High Beams and Daytime Running Lights (T4A)

[Image: Low%20and%20High%20Beams%20and%20Daytime...0(T4A).jpg]

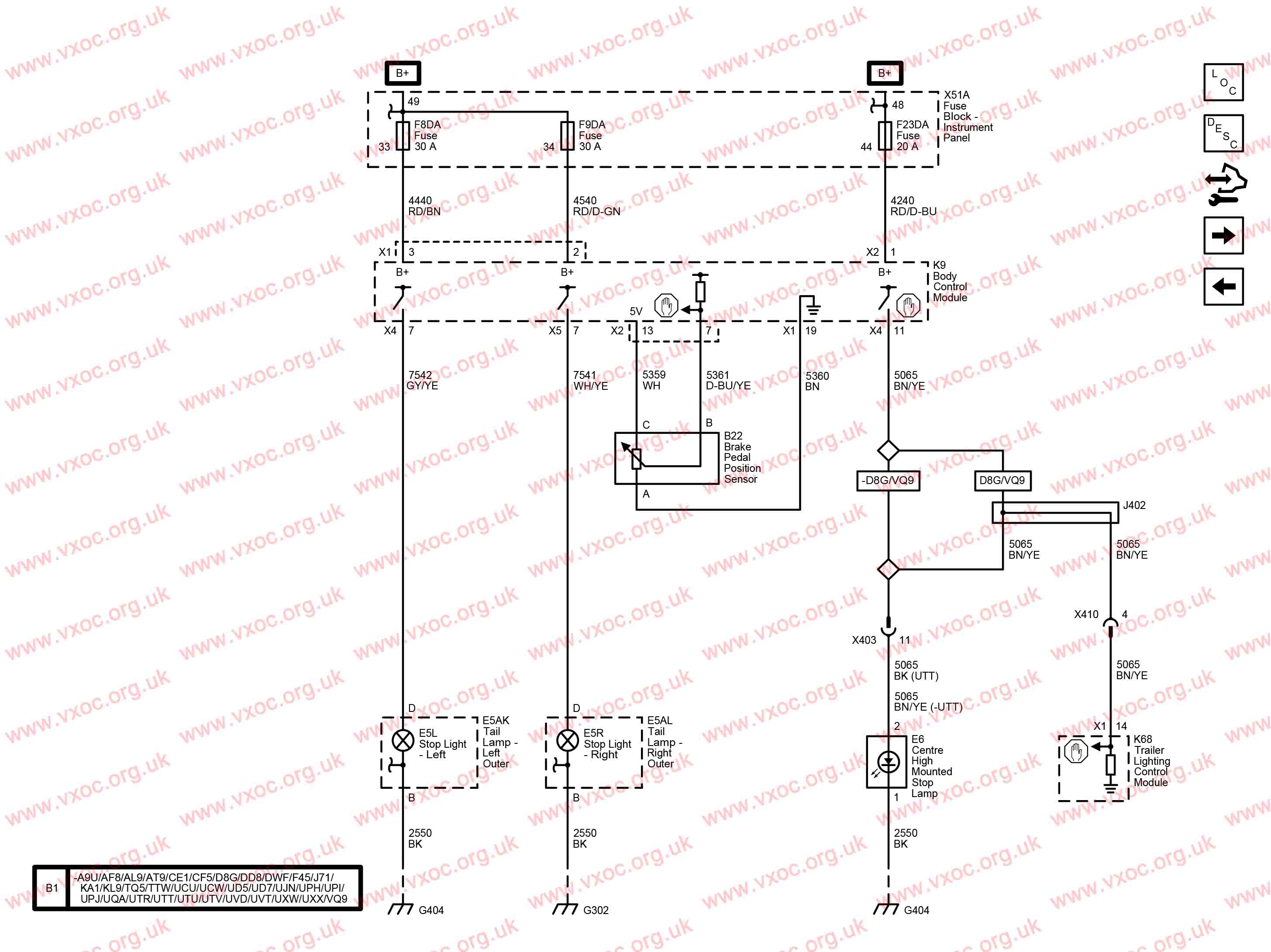

Stop and Tail Lamps

[Image: Stop%20and%20Tail%20Lamps.jpg]
